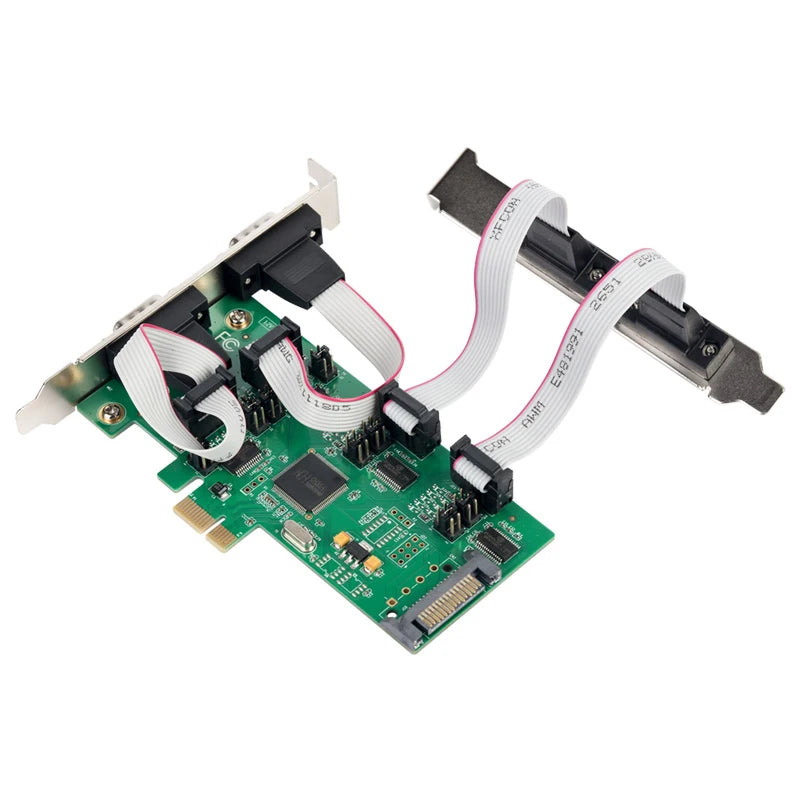

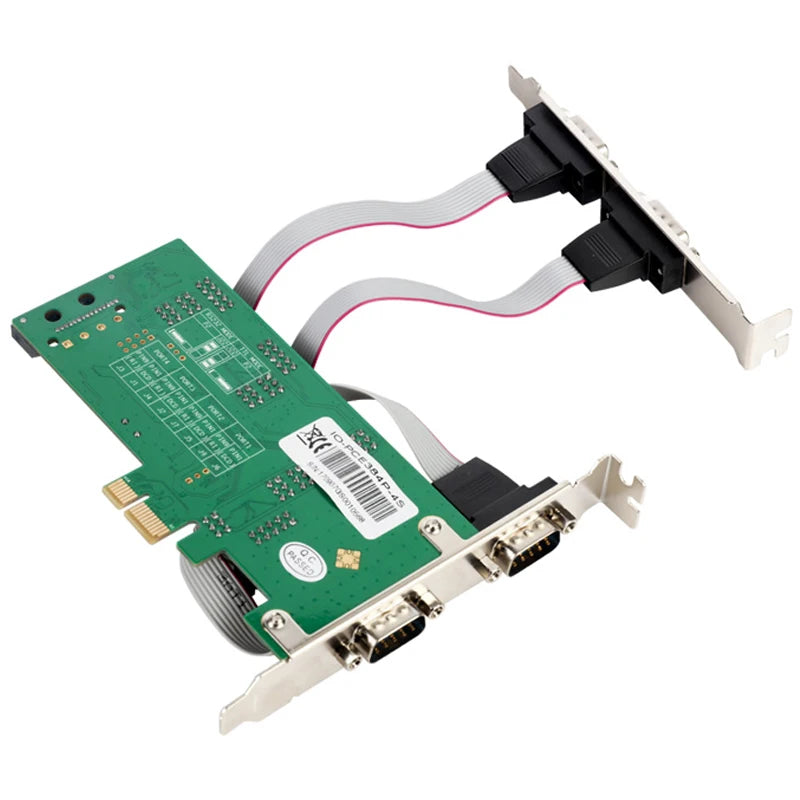

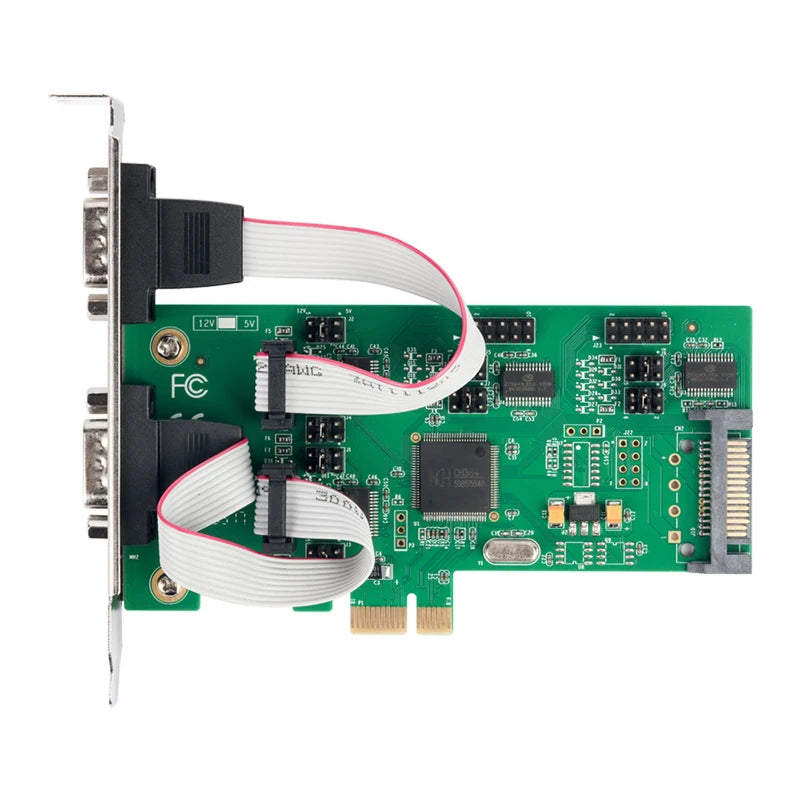

PCI express 4 port Serial card Industrial Multi RS-232 DB9 COM port adapter for Serial Networking Monitoring Equipment
SPECIFICATIONS
Brand Name: OhLinTek
Interface Type: PCI Express
Model Number: IO-PCE384P-4S
Origin: Mainland China
Package: Yes
Type: Add On Cards
Features
•Compliant with PCI Express Base Specification 1.1.
•Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
•Support 4 x UART serial ports
•Built-in 16C550,16C552,16C554 compatible UART
•256-bype deep transmit/receive FIFOs
•Data transfer rate up to 230400bps
•Optional RS-232 signal or power output to serial device
•Provides 5VDC or 12VDC power output via pin 1
•Provides 5VDC or 12VDC power output via pin 9
•Plug-n-Play, I/O address and IRQ assigned by BIOS.
System Requirements
•Windows98/98e/ME
•Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8/10
•Linux Kernel 2.4 & 2.6
One available PCI Express slot
Package Contents
1 x Powered RS-232 4-Port PCIe Card
1 x Driver CD
1 x User Manual
